The Delphyne VSCode Extension

A Visual Studio Code extension is available for interactively writing demonstrations, navigating strategy trees, and running oracular programs.

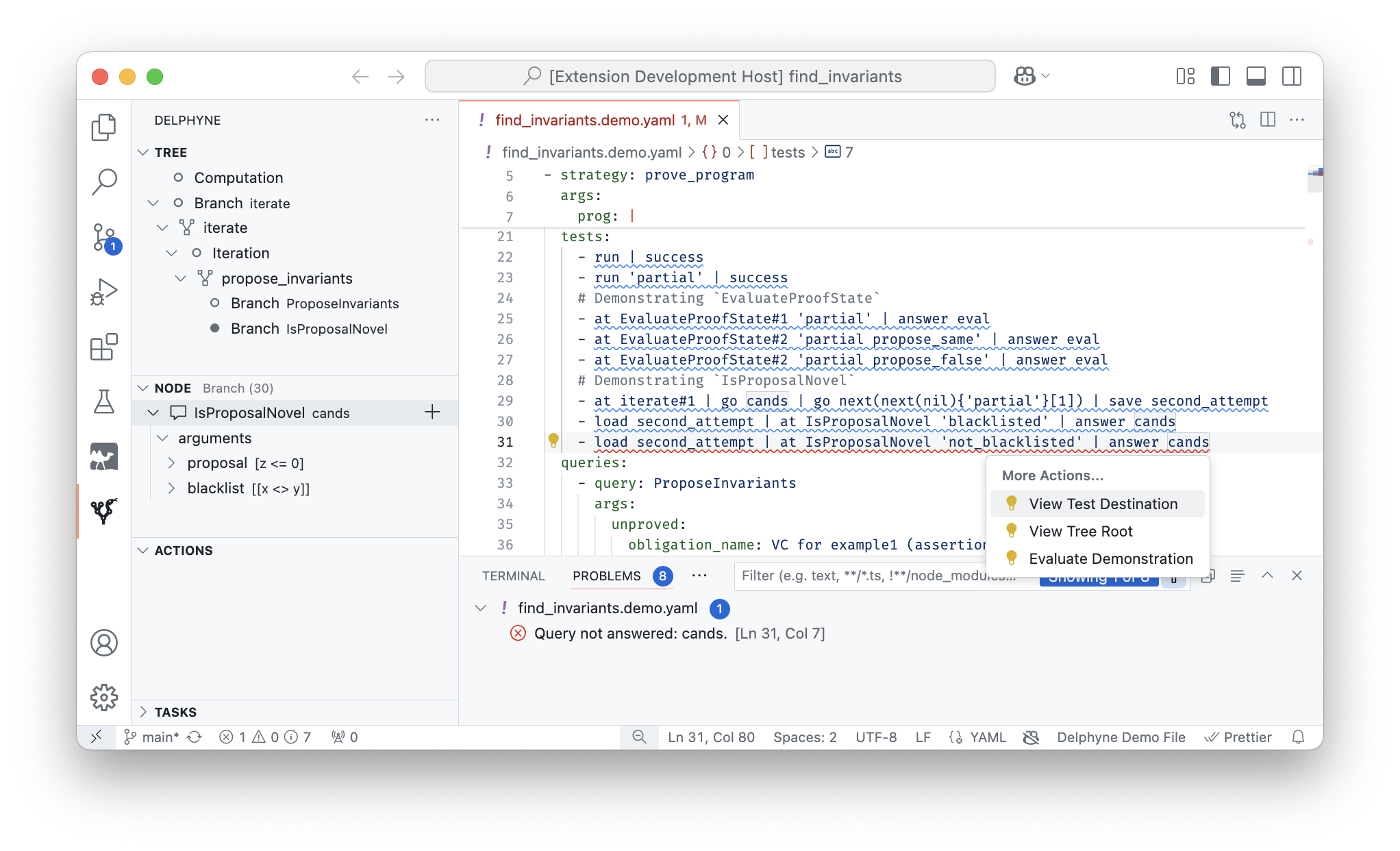

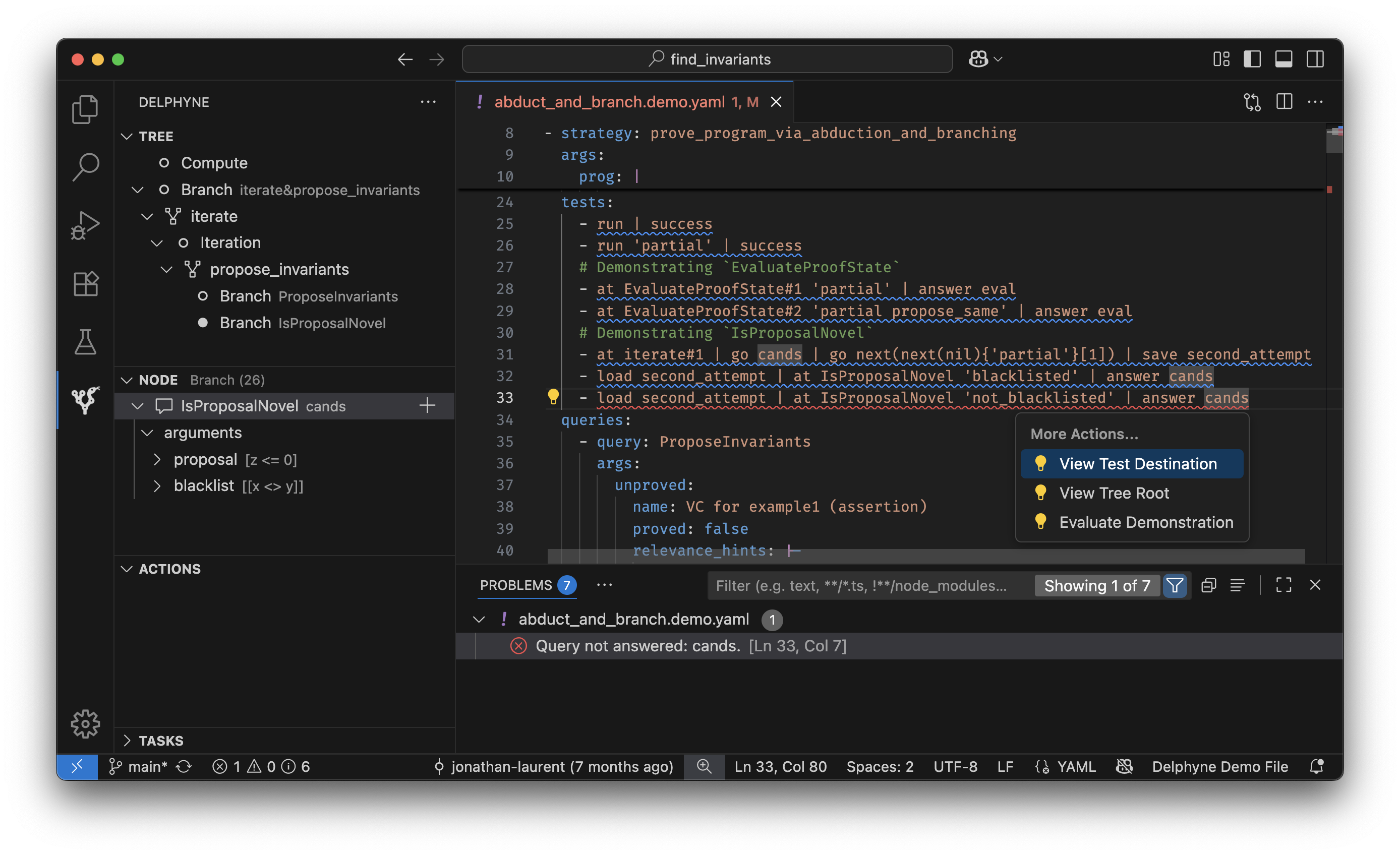

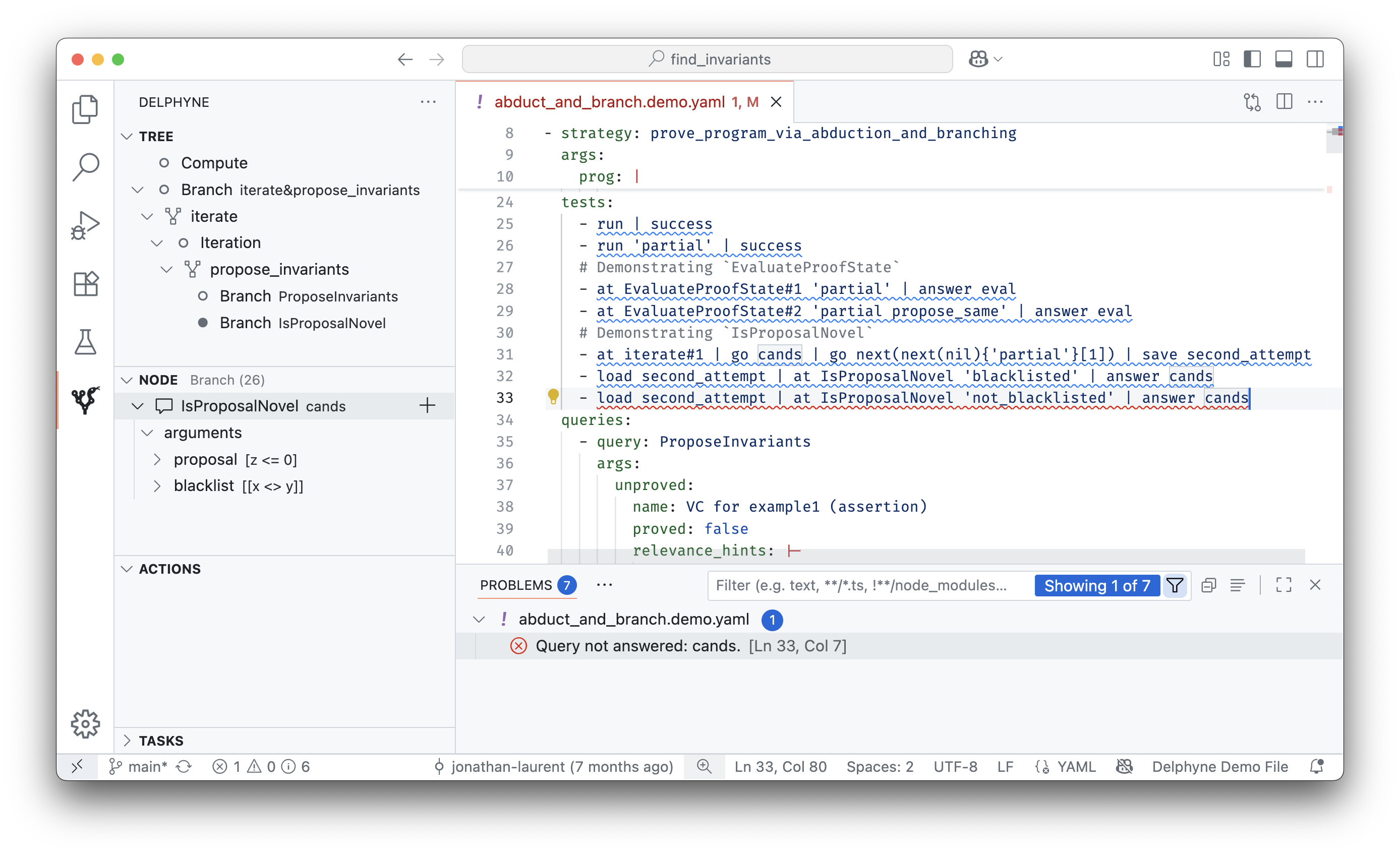

Extension Screenshot Extension Screenshot

Setting Up The Extension

Recommended Editor Configuration

We provide instructions for installing the Delphyne extension on the documentation home page. For the best experience, we recommend also installing the following VSCode extensions:

In addition, for optimal readability of demonstration files, line wrapping should be activated for YAML files. We recommend doing the same for Jinja files. Finally, we recommend associating the *.jinja extension with the jinja-md file format. See below for the recommended JSON configuration, which you can copy to your VSCode settings.

.vscode/settings.json
"[yaml]": {
    "editor.wrappingIndent": "indent",
    "editor.wordWrap": "wordWrapColumn",
    "editor.indentSize": 2,
    "editor.wordWrapColumn": 100,
    "editor.rulers": [100],
},
// Wrap template files for readability.
"[jinja-md]": {
    "editor.wrappingIndent": "indent",
    "editor.wordWrap": "wordWrapColumn",
    "editor.wordWrapColumn": 80,
    "editor.indentSize": 2,
    "editor.rulers": [80],
},
// Indicate that the Jinja templates are written in Markdown
"files.associations": {
    "*.jinja": "jinja-md"
}

Starting The Delphyne Server

The Delphyne extension relies on Delphyne's language server to evaluate demonstrations and run commands. The language server is automatically started in the background when the Delphyne extension is activated (by clicking on the Delphyne icon on the VSCode activity bar), if it is not running already (listening on port 3008).

Locating the language server

The Delphyne extension uses the Python distribution currently selected for the workspace by Pylance to launch the language server. If no such distribution is configured, you can set it via the Python: Select Interpreter command and then try again using the Delphyne: Start Server Command.

The background server process can be shut down using the Delphyne: Kill Server command. The Delphyne: Start Server Command can be used to restart it, if it is not running already. The server can be launched outside VSCode using the delphyne serve shell command. Since the server is stateless, it can be restarted at any time. One reason for running the server outside VSCode is to attach a debugger to it, which allows setting breakpoints inside strategies, policies, or even inside the demonstration interpreter.

You can confirm that the language server is running by looking at the Delphyne output channel (from the Output tab in the panel). See Troubleshooting if you encounter any problem.

Detecting Project Root Directories

When evaluating a demonstration or running a command, the Delphyne extension locates the corresponding project root directory as follows:

  1. If a transitive parent directory for the current demonstration or command file contains a delphyne.yaml configuration file, it is selected.
  2. If the current editor is not attached to an existing file1 or no delphyne.yaml file can be found, the current VSCode's workspace directory is used.

The Delphyne: Show Root Directory for Current File command can be used to show the current project root. The rules above allow browsing and editing multiple Delphyne projects within a single VSCode workspace.

Global and Local Configuration

Both demonstration and command files are evaluated in the context of a given configuration record, which specifies information such as the location and names of Python modules in which strategies can be found, the location of prompting templates and demonstration files, etc... This information can be stored in the project's delphyne.yaml file, whose content may look like:

strategy_dirs: ["."]
modules: ["module_1", "module_2"]
demo_files: ["demo_1", "demo_2"]

See the Reference for the list and description of all available settings. All settings have default values so empty delphyne.yaml files are allowed (or no file at all if the project root coincides with the VSCode workspace). In addition, any subset of global settings from the delphyne.yaml file can be locally overriden in individual demonstration or command files by prefixing it with a @config comment block.

Editing Demonstrations

Once activated, the Delphyne extension recognizes demonstration files via their extension *.demo.yaml. A proper YAML schema is automatically loaded and syntax errors are displayed within the editor. To quickly add a new demonstration, you can use the demo snippet (by typing demo and clicking on Tab). All available snippets are listed in vscode-ui/snippets.json.

To evaluate a demonstration, put your cursor anywhere in its scope. A light bulb should then appear, suggesting that code actions are available. Use Cmd+. to see available code actions and select Evaluate Demonstration. Diagnostics should then appear, possibly after a moment of waiting (in which case a pending task should be displayed in Delphyne's Tasks view). If the demonstration was successfully evaluated, an info diagnostic should be shown for every test. Otherwise, warnings and errors can be displayed. These diagnostics will stay displayed until the demo file is closed or the demonstration gets updated. Note that adding comments or modifying other demonstrations does not invalidate them.

Each test in a demonstration, even a failing one, describes a path through the underlying search tree. In order to visualize the endpoint of this path, you can put your cursor on the test and select the View Test Destination code action. The resulting node and its context will then be displayed in Delphyne's Tree, Node and Actions view. In the typical case where the test is stuck on a query that is unanswered in the demonstration, one can then click on the + icon next to its description (within the Node view) to add it to the demonstration (if the query exists already, a Jump To icon will be shown instead). The standard workflow is then to add an answer to this query and evaluate the demonstration again.

To evaluate all demonstrations within a file, you can use the Delphyne: Evaluate All Demonstrations in File command (use Cmd+Shift+P to open the command palette). To see the prompt associated to a query, put your cursor on this query and use the See Prompt code action. Doing so will create and run the appropriate command in a new tab.

Automatic Reloading of Strategies

The language server reloads all modules listed in delphyne.yaml for every query, using importlib.reload. This way, strategies can be updated interactively without effort. Note that modules are reloaded in the order in which they are listed. Thus, a module should always be listed after its dependencies.

Evaluating Demonstrations using the CLI

Demonstrations can also be evaluated from the shell, using the Delphyne CLI. However, the CLI provides much more limited feedback so it is mainly useful for testing and continuous integration.

Running Commands

Many interactions with Delphyne can be performed by executing commands.Commands can be specified in YAML files with extension .exec.yaml. Unnamed documents are also recognized as command files if they start with line # delphyne-command, possibly following other YAML comments. Commands can emit diagnostics and intermediate status updates, output a stream of partial results and be safely interrupted. The Delphyne extension provides editor support for these features, via its Task View. Commands can also be run from the Delphyne CLI, which is useful for specifying test suites or launching a large number of commands.

A standard command is run_strategy, which can be used to run an oracular program by specifying a strategy along with a policy (demonstrations are automatically extracted from the files listed in delphyne.yaml). To create a new tab with a template for invoking the run_strategy command, you can use Delphyne: Run Strategy from the VSCode command palette.

A Command Example
# delphyne-command

command: run_strategy
args:
  strategy: prove_program
  args:
    prog: |
      use int.Int

      let main () diverges =
        let ref a = any int in
        let ref b = a * a + 2 in
        let ref x = 0 in
        while b < 50 do
          x <- x * (b - 1) + 1;
          b <- b + 1;
        done;
        assert { x >= 0 }
  policy: prove_program_policy
  policy_args: {}
  num_generated: 1
  budget:
    num_requests: 60

To execute a command, one can put the cursor over it and use the Execute Command code action. Doing so will launch a new task that can be viewed in the Delphyne Task view. When the task terminates (successfully or with an error), the command's result is appended at the end of the command file (and can be discarded using the Clear Output code action). When a command returns a trace, the latter can be inspected via the Show Trace code action.

The progress of commands can be supervised while they are running through the Tasks view. This view lists all currently running commands and maps each one to a set of actions. For example, a command can be cancelled or its progress indicator shown on the status bar. In addition, the Update Source action (pen icon) allows dumping the command's current partial result to the command file. In the case of the run_strategy command, this allows inspecting the current trace (i.e. the set of all visited tree nodes and spaces) at any point in time while search is still undergoing.

Note

In the future, Delphyne will allow adding new commands by registering command scripts.

Whether they originate from evaluating demonstrations or running commands, traces can be inspected using the Tree, Node and Actions views (see screenshot at the top of this page). These views are synchronized together and display information about a single node at a time. The Tree view indicates a path from the root to the current node and allows jumping to every intermediate node on this path. The Node view shows the node type and all associated spaces. For each space, it shows the underlying query or allows jumping to the underlying tree. Finally, the Actions view lists all children of the current node that belong to the trace. Actions leading to subtrees containing success nodes are indicated by small checkmarks.

Navigation operations can be undone by clicking on the Undo icon on the header of the tree view or by using shortcut Cmd+D followed by Cmd+Z.

Tips and Shortcuts

  • Folding is very useful to keep demonstration readable. You should learn the standard VSCode shortcuts for controlling folding (Cmd+K+Cmd+L for toggling folding under the cursor, Cmd+K+Cmd+0 for folding everything, Cmd+K+Cmd+3 for folding everything at depth 3, Cmd+K+Cmd+J for unfolding everything...). In addition, the custom Delphyne shortcut Cmd+D+Cmd+K can be used to fold all strategy and query arguments outside of the cursor's scope.
  • Shortcut Cmd+D+Cmd+V can be used to focus on Delphyne's views.
  • The Github Copilot Code Actions can get in the way of using Delphyne and can be disabled with the "github.copilot.editor.enableCodeActions": false setting.
  • When editing YAML files (and demonstration files in particular), VSCode allows semantically expanding and shrinking the selection with respect to the underlying syntax tree via Cmd+Ctrl+Shift+Left and Cmd+Ctrl+Shift+Right.
  • To close a tab (and in particular a command tab), you can use shortcut Cmd+W, followed by Cmd+D to decline saving the tab's content if prompted.
  • Since command outputs can be verbose, it is recommended to start folding sections starting at level 4 (using Cmd+K+Cmd+4) and then unfolding sections as needed.

Troubleshooting

Accessing log information

The Delphyne extension outputs logging information in three different output channels:

  • Delphyne: main logging channel
  • Delphyne Server: the output of the language server is redirected here (only when the server was started by the extension)
  • Delphyne Tasks: displays the logging information produced by commands such as run_strategy

You should consult those channels if anything goes wrong. Also, to output more information, you can ask the extension to log more information by raising the log level to Debug or Trace via the Developer: Set Log Level command.

Killing a server instance still running in the background

After VSCode quit unexpectedly, the language server may still be running in background, which may cause problems when trying to restart the extension. On Unix systems, the language server can be killed by killing the program listening to port 3008:

sudo kill -9 $(sudo lsof -t -i :3008)

  1. For example, it may contain an unsaved command specification. ↩
