VSCode Extension

A Visual Studio Code extension is available for interactively writing demonstrations, navigating strategy trees, and running oracular programs.

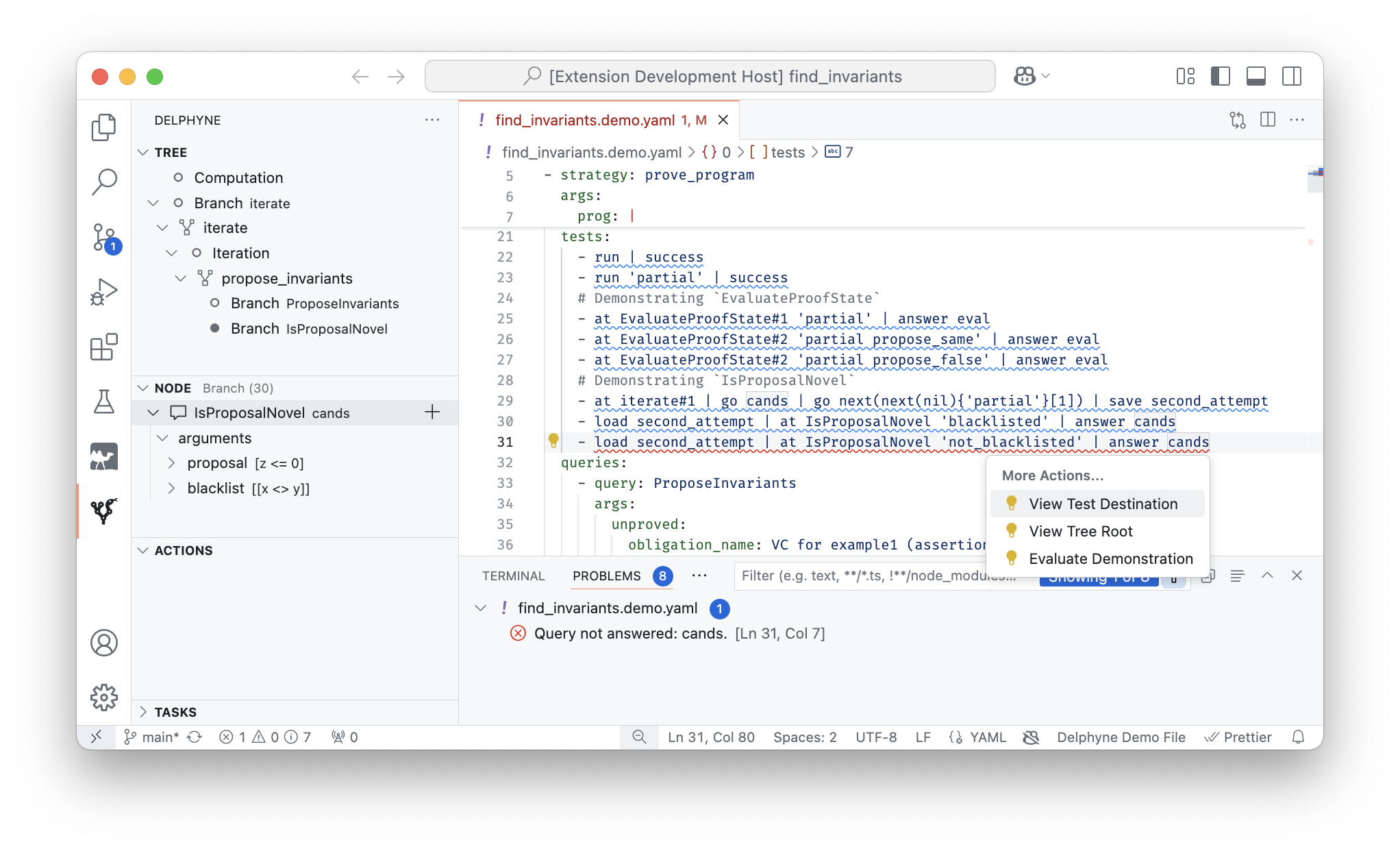

Extension Screenshot

Setting up the extension

After installing the Delphyne extension and opening a workspace containing a Delphyne project (whose root features a delphyne.yaml file), you can start the Delphyne extension by clicking on the Delphyne icon on the VSCode activity bar. Doing so will spawn a Delphyne language server if one is not running already. You can confirm that the language server is running by looking at the Delphyne output channel (from the Output tab in the panel). See the Troubleshooting section if you encounter any problem.

Locating the language server

The Delphyne extension uses the Python distribution currently selected for the workspace by Pylance to launch the language server. If no such distribution is configured, you can set it via the Python: Select Interpreter command and then restart VSCode.

Once this is done, you can open a demonstration file and start evaluating demonstrations.

For the best experience, we recommend also installing the following VSCode extensions:

In addition, for optimal readability of demonstration files, line wrapping should be activated for YAML files. We recommend doing the same for Jinja files. Finally, we recommend associating the *.jinja extension with the jinja-md file format. See below for the recommended JSON configuration, which you can copy to your VSCode settings.

.vscode/settings.json
"[yaml]": {
    "editor.wrappingIndent": "indent",
    "editor.wordWrap": "wordWrapColumn",
    "editor.indentSize": 2,
    "editor.wordWrapColumn": 100,
    "editor.rulers": [100],
},
// Wrap template files for readability.
"[jinja-md]": {
    "editor.wrappingIndent": "indent",
    "editor.wordWrap": "wordWrapColumn",
    "editor.wordWrapColumn": 80,
    "editor.indentSize": 2,
    "editor.rulers": [80],
},
// Indicate that the Jinja templates are written in Markdown
"files.associations": {
    "*.jinja": "jinja-md"
}

The Delphyne Workspace File

A Delphyne workspace must have a delphyne.yaml file as its roots:

strategy_dirs: ["."]
modules: ["module_1", "module_2"]
demo_files: ["demo_1", "demo_2"]

This files features the following information:

  • A list of directories within which strategy files can be found, relative to the root of the workspace.
  • A list of module (i.e. file names without extensions) containing those strategies, to be found within those directories. For hot reloading to work, a module should alwways be listed after its dependencies.
  • A list of demonstration files, to be passed implicitly to all commands (e.g. when running an oracular program).

Editing Demonstrations

Once activated, the Delphyne extension recognizes demonstration files via their extension *.demo.yaml. A proper YAML schema is automatically loaded and syntax errors are displayed within the editor. To quickly add a new demonstration, you can use the demo snippet (by typing demo and clicking on Tab). All available snippets are listed in vscode-ui/snippets.json.

To evaluate a demonstration, put your cursor anywhere in its scope. A light bulb should then appear, suggesting that code actions are available. Use Cmd+. to see available code actions and select Evaluate Demonstration. Diagnostics should then appear, possibly after a moment of waiting (in which case a pending task should be displayed in Delphyne's Tasks view). If the demonstration was successfully evaluated, an info diagnostic should be shown for every test. Otherwise, warnings and errors can be displayed. These diagnostics will stay displayed until the demo file ir closed or the demonstration gets updated. Note that adding comments or modifying other demonstrations does not invalidate them.

Each test in a demonstration, even a failing one, describes a path through the underlying search tree. In order to visualize the endpoint of this path, you can put your cursor on the test and select the View Test Destination code action. The resulting node and its context will then be displayed in Delphyne's Tree, Node and Actions view. In the typical case where the test is stuck on a query that is unanswered in the demonstration, one can then click on the + icon next to its description (within the Node view) to add it to the demonstration (if the query exists already, a Jump To icon will be shown instead). The standard workflow is then to add an answer to this query and evaluate the demonstration again.

To evaluate all demonstrations within a file, you can use the Delphyne: Evaluate All Demonstrations in File command (use Cmd+Shift+P to open the command palette). To see the prompt associated to a query, put your cursor on this query and use the See Prompt code action. Doing so will create and run the appropriate command in a new tab.

Automatic Reloading of Strategies

The language server reloads all modules listed in delphyne.yaml for every query, using importlib.reload. This way, strategies can be updated interactively without effort. Note that modules are reloaded in the order in which they are listed. Thus, a module should always be listed after its dependencies.

Running Commands

Many interactions with Delphyne can be performed by executing commands. A command can be invoked via a YAML file specifying its name and arguments, starting with header # delphyne-command. A standard command is the run_strategy command that can be used to run an oracular program by specifying a strategy along with a policy (demonstrations are automatically extracted from the files listed in delphyne.yaml). To create a new tab with a template for invoking the run_strategy command, you can use Delphyne: Run Strategy from the VSCode command palette.

A Command Example
# delphyne-command

command: run_strategy
args:
  strategy: prove_program
  args:
    prog: |
      use int.Int

      let main () diverges =
        let ref a = any int in
        let ref b = a * a + 2 in
        let ref x = 0 in
        while b < 50 do
          x <- x * (b - 1) + 1;
          b <- b + 1;
        done;
        assert { x >= 0 }
  policy: prove_program_policy
  policy_args: {}
  num_generated: 1
  budget:
    num_requests: 60

To execute a command, one can put the cursor over it and use the Execute Command code action. Doing so will launch a new task that can be viewed in the Delphyne Task view. When the task terminates (successfully or with an error), the command's result is appended at the end of the command file (and can be discarded using the Clear Output code action). When a command returns a trace, the latter can be inspected via the Show Trace code action.

The progress of commands can be supervised while they are running through the Tasks view. This view lists all currently running commands and maps each one to a set of actions. For example, a command can be cancelled or its progress indicator shown on the status bar. In addition, the Update Source action (pen icon) allows dumping the command's current partial result to the command file. In the case of the run_strategy command, this allows inspecting the current trace at any point in time while search is still undergoing.

Note

In the future, Delphyne will allow adding new commands by registering command scripts.

Traces can be inspected using the Tree, Node and Actions views (see screenshot at the top of this page). These views are synchronized together and display information about a single node at a time. The Tree view indicates a path from the root to the current node and allows jumping to every intermediate node on this path. The Node view shows the node type and all associated spaces. For each space, it shows the underlying query or allows jumping to the underlying tree. Finally, the Actions view lists all children of the current node that belong to the trace. Actions leading to subtrees containing success nodes are indicated by small checkmarks.

Navigation operations can be undone by clicking on the Undo icon on the header of the tree view or by using shortcut Cmd+D followed by Cmd+Z.

Tips and Shortcuts

  • Folding is very useful to keep demonstration readable. You should learn the standard VSCode shortcuts for controlling folding (Cmd+K+Cmd+L for toggling folding under the cursor, Cmd+K+Cmd+0 for folding everything, Cmd+K+Cmd+3 for folding everything at depth 3, Cmd+K+Cmd+J for unfolding everything...). In addition, the custom Delphyne shortcut Cmd+D+Cmd+K can be used to fold all strategy and query arguments outside of the cursor's scope.
  • Shortcut Cmd+D+Cmd+V can be used to focus on Delphyne's views.
  • The Github Copilot Code Actions can get in the way of using Delphyne and can be disabled with the "github.copilot.editor.enableCodeActions": false setting.
  • When editing YAML files (and demonstration files in particular), VSCode allows semantically expanding and shrinking the selection with respect to the underlying syntax tree via Cmd+Ctrl+Shift+Left and Cmd+Ctrl+Shift+Right.
  • To close a tab (and in particular a command tab), you can use shortcut Cmd+W, followed by Cmd+D to decline saving the tab's content if prompted.

Troubleshooting

Accessing log information

The Delphyne extension outputs logging information in three different output channels:

  • Delphyne: main logging channel
  • Delphyne Server: the output of the language server is redirected here (only when the server was started by the extension)
  • Delphyne Tasks: displays the logging information produced by commands such as run_strategy

You should consult those channels if anything goes wrong. Also, to output more information, you can ask the extension to log more information by raising the log level to Debug or Trace via the Developer: Set Log Level command.

Killing a server instance still running in the background

After VSCode quitted unexpectedly, the language server may still be running in background, which may cause problem when trying to restart the extension. On Unix systems, the language server can be killed by killing the program listening to port 8000:

sudo kill -9 $(sudo lsof -t -i :8000)

Debugging the language server

To debug the language server or even specific strategies, it is useful to attach a debugger to the language server. To do so, you should open VSCode at the root of the Delphyne repository and use the Debug Server debugging profile. This will start the server in debug mode (on port 8000). Starting the Delphyne extension when a server instance is running already will cause the extension to use this instance (as confirmed by the log output in the Delphyne channel). You can then put arbitrary breakpoints in the server source code or even in strategy code.
